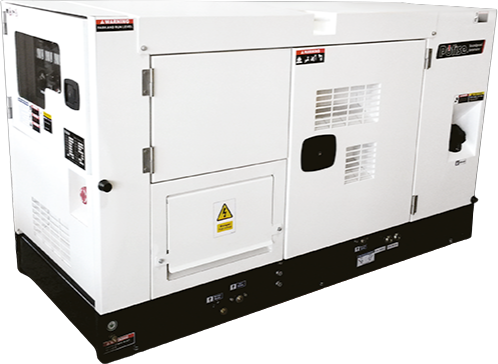

generator specs


Standby Power 16.5kVA/13.6kW
Prime Power 15kVA/12kW
Dimensions L x W x H (mm) 1550 x 750 x 1066
Dry Weight 649kg
Engine Kubota D11703-BG
Engine Speed 1500rpm
Alternator Mecc Alte
Frequency 50Hz
Voltage Output 380V - 440V
Amps (Max) 19.7A - 22.8A
Power Outlets on Generator 3-phase/5-wiring
Fuel Capacity 37L

Additional Notes

Certain machines in this size can be supplied at voltages and frequency that differ from the specs above. Please contact us for further information.
